The Airflow pipeline reported success. The load task ran, finished green, and upserted zero chunks. No error, no exception, no failed task. The data just wasn’t there. A silent empty result is the worst kind, because nothing tells you to go looking.
// 01 — THE SETUP

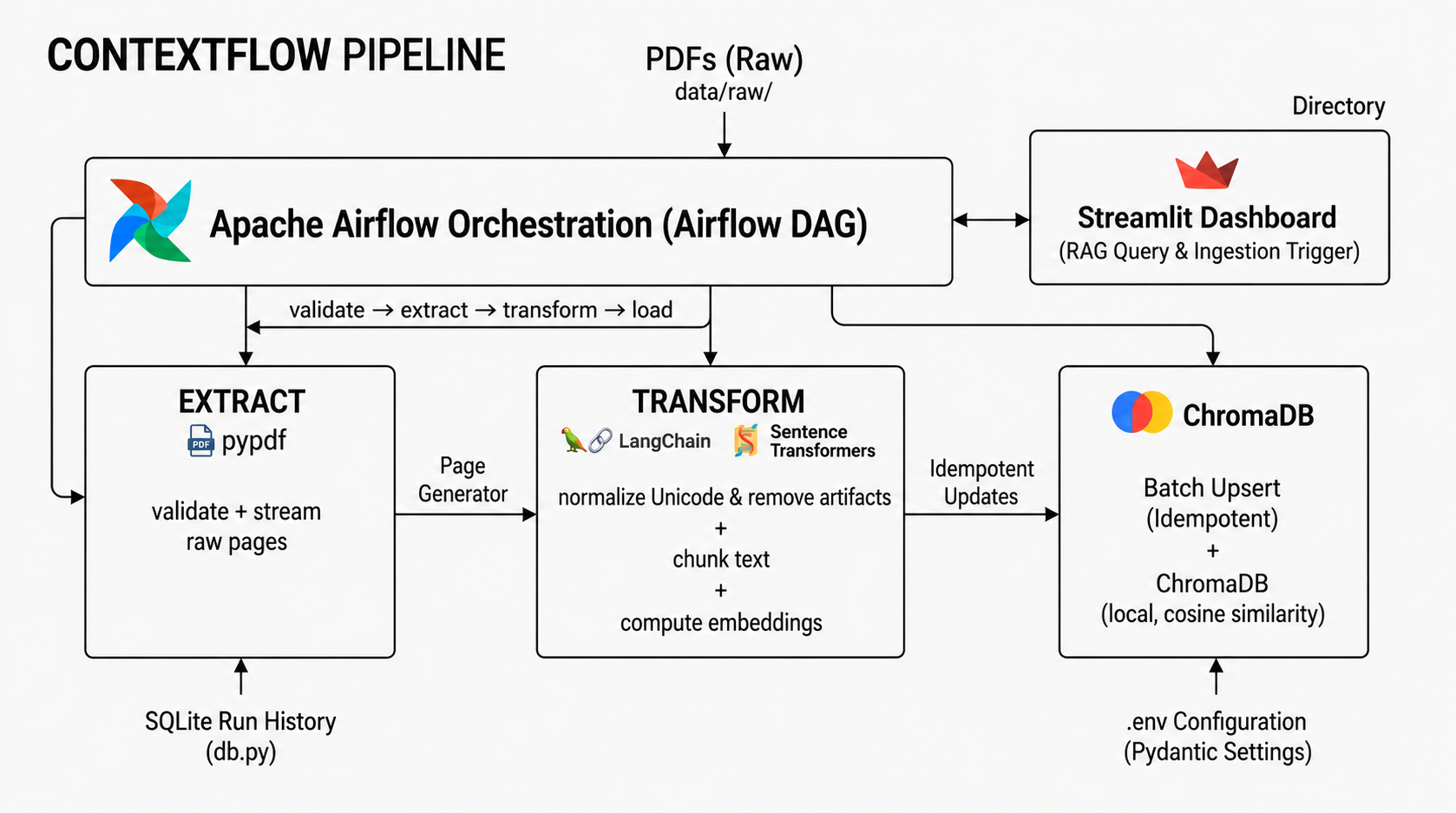

The DAG is validate >> extract >> transform >> load. The transform task embedded the chunks and returned them; load received them from the previous task and upserted into ChromaDB. Tasks pass data through Airflow’s XCom.
// 02 — THE SYMPTOM
load got no chunks and wrote nothing, but raised nothing either. Every task showed success. The only symptom was a collection that stayed empty after a “successful” run.
// 03 — THE CULPRIT
XCom stores inter-task data in Airflow’s metadata database, and it caps payloads at roughly 48 KB. The transform task was returning the full embedded chunk list: about 800 chunks × 384 floats ≈ 2.5 MB. Payloads over the cap aren’t loudly rejected; they’re silently truncated or dropped. So transform “returned” 2.5 MB, XCom quietly discarded it, and load received nothing, with no error anywhere in the chain. XCom is a channel for small control values, and I’d used it as a data bus.
// 04 — THE FIX
Pass a pointer, not the payload. transform writes the chunks to a timestamped JSON file on the shared /data volume and returns only the file path through XCom; load reads the file, upserts, and deletes it:
# transform: write data to disk, hand XCom a path
path = f"/data/chunks_{ts}.json"; write_json(path, chunks); return path
# load: read the path, do the work, clean up
chunks = read_json(path); batch_upsert(chunks); os.remove(path)XCom now carries a few dozen bytes. The data never touches the metadata database.
TAKEAWAYS
- XCom is for small control values (~48 KB), not data. Push anything large to shared storage and pass the path.
- The most dangerous failures are silent. A size cap that truncates instead of raising will hand you an empty result and a green checkmark.
- When a “successful” pipeline produces no output, suspect a channel that swallowed the data, not the logic that produced it.
